.NET 9 API with libs inside an Nx Workspace

About 7 min

.NET 9 API with libs inside an Nx Workspace

Download and install .NET 9.0open in new window

Goal: add a .NET 9 Web API to your Nx monorepo, make Nx treat it like a first-class app, and create corresponding backend libraries (Application, Contracts, Domain, Infrastructure) you can reference from the API.

What will we build

├─ apps/
│  └─ bricks-for-kids-api/              # .NET 9 Web API app
│     └─ project.json                   # Nx target definitions (serve/build)
└─ libs/
   └─ bricks-for-kids-backend/
      ├─ Application/                   # Use-cases, orchestration
      ├─ Contracts/                     # DTOs, interfaces visible to API
      ├─ Domain/                        # Entities, value objects, rules
      └─ Infrastructure/                # EF Core, external services

Step 1: Create a Visual Studio solution at the monorepo root

This makes your .NET world comfortable in Visual Studio while still living neatly inside Nx. Open Visual Studio en create a blank solution with the name swe-demo-monorepo. Or execute the following command in the root of the monorepo folder:

dotnet new sln --name vs-solution-monorepo

Step 2: Add a .NET 9 Web API under apps

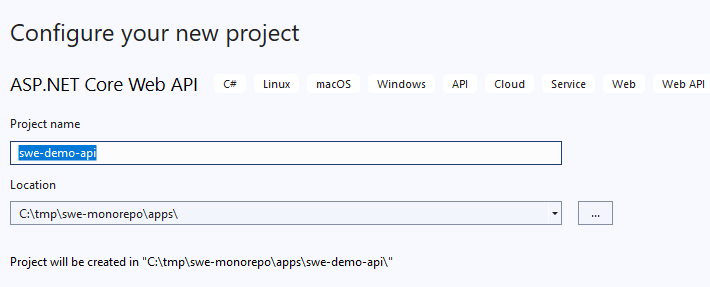

Add the API project swe-demo-api to the solution and make sure to locate it inside the apps folder.

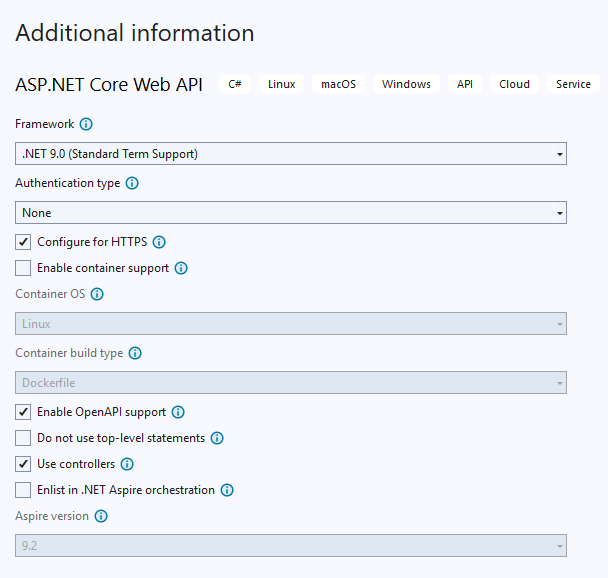

add api to solution api settings

Update our `.gitignore`

Since we're introducing a .NET 9 API into our monorepo (which previously contained only Angular apps and libraries), we need to update our .gitignore to exclude Visual Studio–specific and .NET build artifacts.

Visual Studio and the .NET SDK generate a variety of local and temporary files, such as user-specific settings, build outputs, caches, and dependency artifacts, that should never be tracked in Git. These files are environment-specific, large, and often regenerated automatically during the build process. Including them in version control would:

Pollute the repository with unnecessary files (e.g., .vs/, bin/, obj/)
Cause merge conflicts between developers using different IDE configurations
Leak local settings such as breakpoints or user preferences (*.user, *.suo)
Increase clone and build times unnecessarily

By extending the monorepo's .gitignore with the standard Visual Studio and .NET ignore patterns, we ensure that only source code, configuration, and project files are tracked, keeping the repo clean and consistent across environments.

You can find Visual Studio .gitignores onlineopen in new window. Just add the content to the end of .gitignore from our monorepo.

The appsettings.Development.json file contains environment-specific configuration values — such as local database connections, API keys, or debugging settings — that vary from one developer's machine to another.

We exclude it from version control to:

Prevent accidental exposure of sensitive or local-only data
Avoid merge conflicts between different developers' local configurations

Each developer can maintain their own local version of this file without affecting others or polluting the shared repository.

Add to .gitignore:

apps/swe-demo-api/appsettings.Development.json

Step 3: Integrate the .NET 9 API as a monorepo app

In this step, we integrate the new .NET 9 API into our existing monorepo structure alongside the existing Angular apps and libraries. Treating the API as a first-class app within the monorepo allows us to manage frontend and backend code in a single repository, simplifying dependency management, CI/CD, and version alignment.

We start the integration by creating a new project.json file for the .NET 9 API. This file defines how the API fits into the monorepo — including its targets, build commands, and project type — allowing Nx to recognize and manage it consistently with the existing Angular apps and libraries.

apps\swe-demo-api\project.json

{
  "name": "swe-demo-api",
  "projectType": "application",
  "sourceRoot": "apps/swe-demo-api",
  "tags": ["scope:backend", "type:api"],
  "targets": {
    "serve": {
      "executor": "nx:run-commands",
      "options": {
        "command": "dotnet run --project apps/swe-demo-api --launch-profile https"
      }
    },
    "build": {
      "executor": "nx:run-commands",
      "options": {
        "command": "dotnet build apps/swe-demo-api"
      }
    }
  }
}

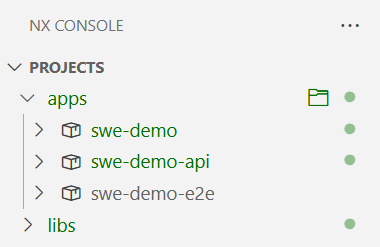

Make sure to check if the api is visible in the Nx Console:

You can now serve the api and check the weatherforecast endpoint, which you can find in the console output.

Swagger

From .NET 9, the default Web API template no longer wires up Swagger/OpenAPI for you. That keeps new APIs minimal, but it also means you must explicitly opt in if you want the interactive docs and OpenAPI spec. You can easily enable it by:

Adding the nuget package Swashbuckle.AspNetCore
Adding builder.Services.AddSwaggerGen(); above var app = builder.Build(); in the Program.cs
Change the body of the IsDevelopment condition

if (app.Environment.IsDevelopment())
{
    app.UseSwagger();
    app.UseSwaggerUI();
}

Serve the api and append /swagger/index.html to the root URL

Step 4: Creating the backend lib structure

In this step we introduce a clean, layered library structure for the backend inside the monorepo. We keep the API (app) slim and push business logic into libraries under libs.

Create a new folder swe-demo-backend under libs.
Add four class libraries (following the Clean Architecture style)
- SweDemoBackend.Application
- SweDemoBackend.Contracts
- SweDemoBackend.Domain
- SweDemoBackend.Infrastructure

Application

Purpose: Orchestrates behavior. Coordinates domain + infrastructure via interfaces. No EF/HTTP logic here.

Typical contents

Use cases
Interfaces for repositories
Mapping from Domain to Contracts

public sealed class LegoSetUseCase
{
  private readonly ILegoSetRepository _repo;
  private readonly IMapper _mapper;

  public LegoSetUseCase(IMapper mapper, ILegoSetRepository repo)
  {
    _mapper = mapper;
    _repo = repo;
  }

  public async Task<IEnumerable<LegoSetDto>> GetAllLegoSets(CancellationToken ct = default)
  {
    var entities = await _repo.GetLegoSetsAsync(ct);
    var dtos = _mapper.Map<List<LegoSetDto>>(entities);
    return dtos;
  }
}

Contracts

Purpose: Shape of data at the boundaries (HTTP). Pure, serialization-friendly records.

Typical contents

Requests/responses
DTOs

public class LegoSetDto
{
  public Guid Id { get; set; }
  public string Name { get; set; }
  public int NumberOfPieces { get; set; }
}

Domain

Purpose: Core business rules with no infrastructure concerns.

Typical contents

Entities

 public class LegoSet
 {
   public Guid Id { get; set; } = Guid.NewGuid();
   public string Name { get; set; }
   public int NumberOfPieces { get; set; }
 }

Infrastructure

Purpose: Implements application interfaces using real tech (EF Core, HTTP, etc.). Maps Domain to DB

Typical contents

DbContext & EntityTypeConfigurations
Repositories
Migrations

public class BricksForKidsDbContext : DbContext
{
  public BricksForKidsDbContext(DbContextOptions<BricksForKidsDbContext> options) : base(options) { }

  public DbSet<LegoSet> LegoSets { get; set; }

  protected override void OnModelCreating(ModelBuilder modelBuilder)
  {
    base.OnModelCreating(modelBuilder);
    modelBuilder.ApplyConfigurationsFromAssembly(typeof(BricksForKidsDbContext).Assembly);

    modelBuilder.Entity<LegoSet>().HasData(
              new LegoSet() { Id = Guid.Parse("f3c73d8d-5f8a-4f2a-9c11-2c9a1c2f8d2e"), Name="Harry Potter Zweinstein", NumberOfPieces=1540}
          );
  }
}

 public class LegoSetRepository : ILegoSetRepository
{
  private readonly BricksForKidsDbContext _db;

  public LegoSetRepository(BricksForKidsDbContext db)
  {
    _db = db;
  }

  public async Task<IEnumerable<LegoSet>> GetLegoSetsAsync(CancellationToken ct = default)
  {
    return await _db.LegoSets.ToListAsync();
  }
}

 public class LegoSetConfiguration : IEntityTypeConfiguration<LegoSet>
{
  public void Configure(EntityTypeBuilder<LegoSet> b)
  {
    b.ToTable("LegoSet");
  }
}

Create the four libraries

The easiest way is to open your sln in Visual Studio and add a new .NET 9 class library for each type

SweDemoBackend.Application in libs\swe-demo-backend\application
SweDemoBackend.Contracts in libs\swe-demo-backend\contracts
SweDemoBackend.Domain in libs\swe-demo-backend\domain
SweDemoBackend.Infrastructure in libs\swe-demo-backend\infrastructure

Manage the dependencies between the libraries

The following dependencies (project references) must be added:

Application: reference to Domain and Contracts
Infrastructure: reference to Application and Domain
API: reference to Application, Infrastructure and Contracts

Step 5: Setup EF Core

The Infrastructure library is responsible for connecting with our SQL Server database. Therefore it is necessary to install the following nuget packages:

Microsoft.EntityFrameworkCore
Microsoft.EntityFrameworkCore.SqlServer
Microsoft.EntityFrameworkCore.Design
Microsoft.EntityFrameworkCore.Tools

Create a new LegoSet entity in the Entities folder in the Domain library:

namespace SweDemoBackend.Domain.Entities
{
  public class LegoSet
  {
    public Guid Id { get; set; } = Guid.NewGuid();
    public string Name { get; set; }
    public int NumberOfPieces { get; set; }
  }
}

Create a new LegoSetConfiguration class in the Configurations folder in the Infrastructure library. This is extra configuration that we want to use when the database is being created based on our entities:

namespace SweDemoBackend.Infrastructure.Configurations
{
  public class LegoSetConfiguration : IEntityTypeConfiguration<LegoSet>
  {
    public void Configure(EntityTypeBuilder<LegoSet> b)
    {
      b.ToTable("LegoSet");
    }
  }
}

Add the DbContext BricksForKidsDbContext in the Infrastructure library.

  public class BricksForKidsDbContext : DbContext
  {
    public BricksForKidsDbContext(DbContextOptions<BricksForKidsDbContext> options) : base(options) { }

    public DbSet<LegoSet> LegoSets { get; set; }

    protected override void OnModelCreating(ModelBuilder modelBuilder)
    {
      base.OnModelCreating(modelBuilder);
      modelBuilder.ApplyConfigurationsFromAssembly(typeof(BricksForKidsDbContext).Assembly);

      modelBuilder.Entity<LegoSet>().HasData(
                new LegoSet() { Id = Guid.Parse("f3c73d8d-5f8a-4f2a-9c11-2c9a1c2f8d2e"), Name = "Harry Potter Zweinstein", NumberOfPieces = 1540 }
            );
    }
  }

We'll create a DependencyInjection extension class, which allows as to centralize infrastructure-layer registrations (in this case EF Core) behind a single extension method so the API can "plug in" the backend without knowing its internal details.

In the Infrastructure library add the DependencyInjection class:

using Microsoft.EntityFrameworkCore;
using Microsoft.Extensions.Configuration;
using Microsoft.Extensions.DependencyInjection;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace SweDemoBackend.Infrastructure
{
  public static class DependencyInjection
  {
    public static IServiceCollection AddInfrastructure(this IServiceCollection services, IConfiguration configuration)
    {
      var connectionString = configuration.GetConnectionString("BricksForKidsDBConnectionString");
      if (string.IsNullOrWhiteSpace(connectionString))
      {
        throw new InvalidOperationException("Connection string 'BricksForKidsDBConnectionString' was not found.");
      }


      services.AddDbContext<BricksForKidsDbContext>(options =>
      {
        options.UseSqlServer(connectionString, sql =>
        {
          sql.MigrationsAssembly(typeof(BricksForKidsDbContext).Assembly.FullName);
        });
      });


      return services;
    }
  }
}

We can now call the builder.Services.AddInfrastructure(builder.Configuration); in the Program.cs in our API. This is essential for
- Registering the EF Core DbContext using SQL Server
- Keeping the EF migrations in the Infrastructure assembly
Why do we structure it this way?
- Clean Architecture boundary: The API (composition root) calls a single AddInfrastructure(...) and stays ignorant of EF Core, connection strings, or provider specifics.
- Testability: The Application layer depends on interfaces, while Infrastructure provides the concrete implementations and DbContext.
- Portability: Swapping SQL Server for another provider (or adding caching, SMTP, etc.) is isolated to this method.

Add a LegoSet repository (and interface!).

Interface is located in the application library
Repository implementation is located in the infrastructure library
Don't forget to register the repository for DI in the AddInfrastructure extension method

namespace SweDemoBackend.Application.Interfaces.Repositories
{
  public interface ILegoSetRepository
  {
    Task<IEnumerable<LegoSet>> GetLegoSetsAsync(CancellationToken ct = default);
  }
}

namespace SweDemoBackend.Infrastructure.Repositories
{
  public class LegoSetRepository : ILegoSetRepository
  {
    private readonly BricksForKidsDbContext _db;

    public LegoSetRepository(BricksForKidsDbContext db)
    {
      _db = db;
    }

    public async Task<IEnumerable<LegoSet>> GetLegoSetsAsync(CancellationToken ct = default)
    {
      return await _db.LegoSets.ToListAsync();
    }
  }
}

services.AddDbContext<BricksForKidsDbContext>(options =>
{
   options.UseSqlServer(connectionString, sql =>
   {
      sql.EnableRetryOnFailure();
      sql.MigrationsAssembly(typeof(BricksForKidsDbContext).Assembly.FullName);
   });
});

services.AddScoped<ILegoSetRepository, LegoSetRepository>();

return services;

In the application library we now create a UseCase class, which will be used by our API endpoint controllers:

namespace SweDemoBackend.Application.UseCases
{
  public class LegoSetUseCase
  {
    private readonly ILegoSetRepository _repo;

    public LegoSetUseCase(ILegoSetRepository repo)
    {
      _repo = repo;
    }

    public async Task<IEnumerable<LegoSetDto>> GetAllLegoSets(CancellationToken ct = default)
    {
      var entities = await _repo.GetLegoSetsAsync(ct);

      //Mapping
      List<LegoSetDto> dtos = new List<LegoSetDto>();

      entities.ToList().ForEach(e =>
      dtos.Add(new LegoSetDto()
      {
        Id = e.Id,
        Name = e.Name,
        NumberOfPieces = e.NumberOfPieces,
      }));

      return dtos;
    }
  }
}

Our LegoSetDto should be added to the Contracts library

namespace SweDemoBackend.Contracts.Dtos
{
  public class LegoSetDto
  {
    public Guid Id { get; set; }
    public string Name { get; set; }
    public int NumberOfPieces { get; set; }
  }
}

Time to use this UseCase in our API controller. But first register it as a DI service in Program.cs:

// Add services from infrastructure to the container.
builder.Services.AddInfrastructure(builder.Configuration);

// Add use cases
builder.Services.AddScoped<LegoSetUseCase>();

namespace swe_demo_api.Controllers
{
  [Route("api/[controller]")]
  [ApiController]
  public class LegoSetController : ControllerBase
  {
    [HttpGet]
    public async Task<ActionResult<List<LegoSetDto>>> GetAllLegoSets(
        [FromServices] LegoSetUseCase useCase,
        CancellationToken ct)
    {
      var dto = await useCase.GetAllLegoSets(ct);
      return Ok(dto);
    }
  }
}

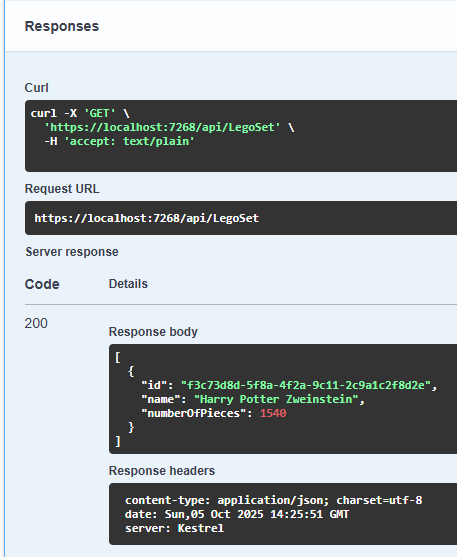

To get our first LegoSets from our database, we must create an initial migration so the database gets created and our lego set is inserted.

For this, we need to add the Microsoft.EntityFrameworkCore.Design package to the API. After that we can create our initial migration using Add-Migration InitialCreate in the Package Manager Console.

Warning

In Visual Studio make sure the swe-demo-api is set as the Startup project
In the Package Manager Console choose as default project your infrastructure library

The migration is created in the Migrations folder in the infrastructure library.

Now execute the migration:

Update-Database

There we go, serve the API and check if you get the legoset back as a response from the endpoint:

Step 6: Environment variables

The appsettings.Development.json is not a great place to put sensitive data (like a connection string). Luckily with a few easy steps we can also make use of an .env file.

Install the nuget package DotNetEnv in the api project
Create a .env file in the root of the api project

CONNECTION_STRING="Data Source=(localdb)\\MSSQLLocalDB;Initial Catalog=BricksForKids;Integrated Security=True;Connect Timeout=30;Encrypt=False;Trust Server Certificate=False;Application Intent=ReadWrite;Multi Subnet Failover=False"

Add the following code to the Program.cs in the api project:

using DotNetEnv;

var builder = WebApplication.CreateBuilder(args);

// Load environment variables from .env file (if it exists)
Env.Load();

builder.Configuration
    .AddJsonFile("appsettings.json", optional: false, reloadOnChange: true)
    .AddJsonFile($"appsettings.{builder.Environment.EnvironmentName}.json", optional: true)
    .AddEnvironmentVariables();

Now we can access the environment variables like:

var connectionString = Environment.GetEnvironmentVariable("CONNECTION_STRING");
//OR
var connectionString = configuration["CONNECTION_STRING"];

Make sure to change this in the DependencyInjection class in the infrastructure library!

Step 7: CORS

When your Angular app (running on http://localhost:4200) calls the API (typically https://localhost:5xxx), the browser enforces Cross-Origin Resource Sharing (CORS). Without a policy, the browser will block requests.

A good idea is to add the allowed origins to the .env file and use them when configuring CORS in your API:

ALLOWED_ORIGINS="http://localhost:4200,http://localhost:4201"

Program.cs

var allowedOriginsEnv = Environment.GetEnvironmentVariable("ALLOWED_ORIGINS") ?? string.Empty;

// Split comma-separated origins, trim spaces, and filter out empties
var allowedOrigins = allowedOriginsEnv
    .Split(',', StringSplitOptions.RemoveEmptyEntries | StringSplitOptions.TrimEntries);

const string FrontendCorsPolicy = "FrontendCorsPolicy";

builder.Services.AddCors(options =>
{
  options.AddPolicy(name: FrontendCorsPolicy, policy =>
  {
    if (allowedOrigins.Length > 0)
    {
      policy
        .WithOrigins(allowedOrigins)
        .AllowAnyHeader()
        .AllowAnyMethod();
    }
  });
});

app.UseCors(FrontendCorsPolicy);

.NET 9 API with libs inside an Nx Workspace

# .NET 9 API with libs inside an Nx Workspace

# Step 1: Create a Visual Studio solution at the monorepo root

# Step 2: Add a .NET 9 Web API under apps

# Update our .gitignore

# Step 3: Integrate the .NET 9 API as a monorepo app

# Step 4: Creating the backend lib structure

# Application

# Contracts

# Domain

# Infrastructure

# Create the four libraries

# Manage the dependencies between the libraries

# Step 5: Setup EF Core

# Step 6: Environment variables

# Step 7: CORS

.NET 9 API with libs inside an Nx Workspace

Step 1: Create a Visual Studio solution at the monorepo root

Step 2: Add a .NET 9 Web API under apps

Update our `.gitignore`

Step 3: Integrate the .NET 9 API as a monorepo app

Step 4: Creating the backend lib structure

Application

Contracts

Domain

Infrastructure

Create the four libraries

Manage the dependencies between the libraries

Step 5: Setup EF Core

Step 6: Environment variables

Step 7: CORS
